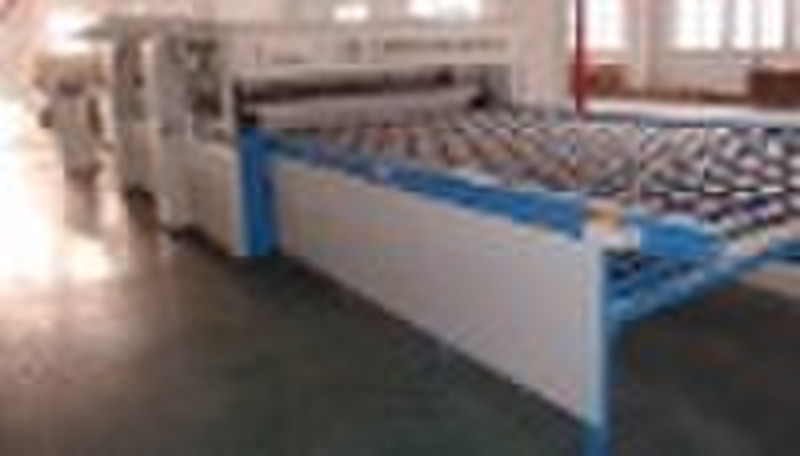

solar laminating machine
Crystal Zhang
Contact person
Basic Information
| Model Number | SN2337 |
|---|---|
| Place of Origin | Zhejiang China (Mainland) |
| Brand Name | soenenPV |
Power supply AC380V±10% three-phase five-wire 50Hz Total power 75kW Working power 36kW Laminating area 2200mm×3600mm Free space between heating plate and upper chamber 40mm Lamination pressure 0Mpa 0.1Mpa The temperature control precision ±1°C Temperature uniformity ≤±1°C Operating working temperature room temperature up to 180°C Exhaust velocity 70 L/S Vacuum ≤100Pa(20-40s) Equipment size 13000×3600×1850mm Air pressure 0.6MPa 0.8MPa Conveyor bearing ≤300Kg Operating noise ≤70dbA Equipment configuration loadinging system + laminating system + unloading system + vacuum pump + heating system
Delivery terms and packaging
Packaging Detail: wooden case and flat rack container Delivery Detail: 30 to 45 days
Port: Ningbo or Shanghai
